Description

1. Purpose: Staged CNG cylinders are mostly used in applications requiring large amounts of gas, such as CNG filling stations or industrial processes. This system ensures efficient storage and distribution of CNG.

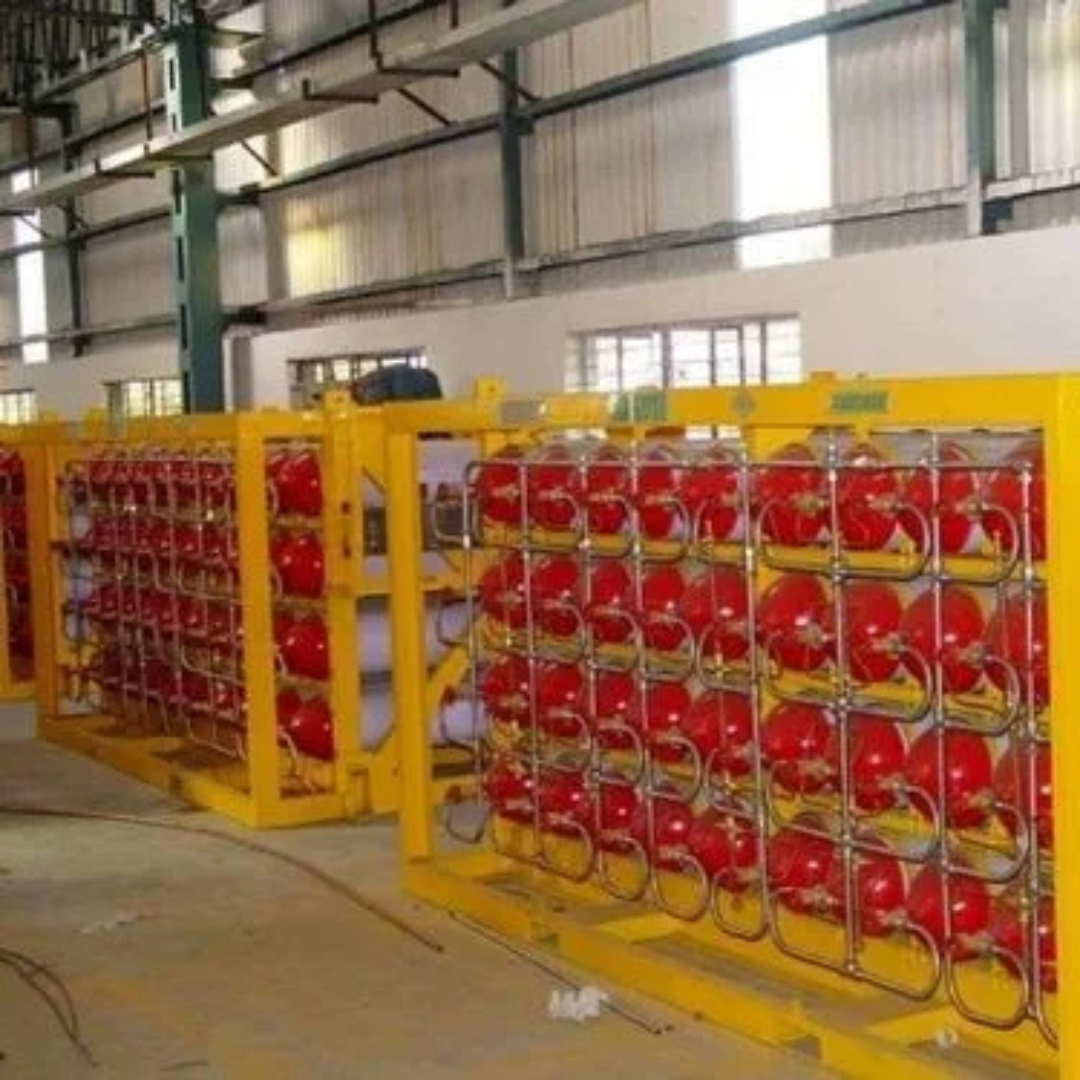

2. Configuration: Cascade CNG cylinder consists of several CNG cylinders placed in series or parallel. Cylinders are usually staggered so that fuel flows from one cylinder to the next as required.

3. Control System: Cascade CNG cylinders use a control system to maintain the pressure required for fuel delivery. This process ensures that CNG is delivered at the appropriate pressure for the intended application.

4. Valve Manifold: Cylinders in a cascade CNG system are connected through a valve manifold. Manifolds control the oil flow between the cylinders, facilitating the transfer of oil until the end of use.

5. Capacity and Pressure: The capacity and pressure ratings of cascaded CNG cylinders will vary depending on specific applications and requirements. While the number and size of cylinders in the cascade system determine the total capacity, the manometer is determined according to the system design and intended use.

6. Safety features: Staged CNG cylinder systems include various safety features to ensure safety. These may include pressure gauges, temperature gauges and gauges to minimize the risk of accidents or gas leaks.
